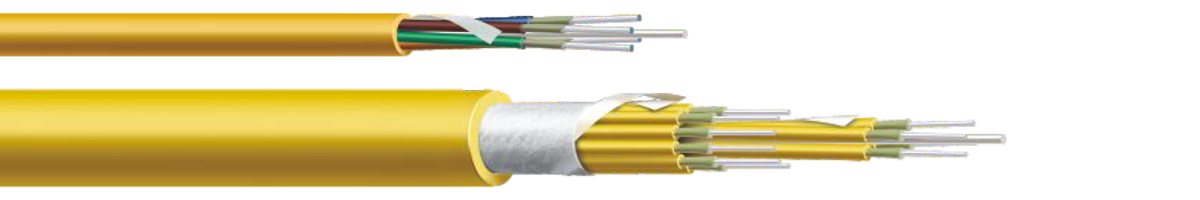

BREAKOUT TIGHT BUFFER UNARMOURED OPTICAL FIBRE CABLE (2-16F)

Application

  • —Rugged multi fibre cross connect
  • —Intra building backbone
  • —Fibre backbone to communication closets
Ipsum

Typical Cross Section of 8F

Cable Construction Details

  • —4/6/8/12/16 Fibre of Single mode fibre in full compliance with ITU-T G652D (also available with G657 SM Fibre and OM1 / OM2 / OM3 & OM4 MM Fibre)
  • ——FRP and Aramid Yarns as Strength Member
  • ——PA-12 tight coating on Fibre
  • —LSZH Compound for sheathing for simplex subunits & outer sheath of cable
FIBRE COUNT DIAMETER (mm) Nominal WEIGHT (Kg./Km) Nominal TENSILE STRENGTH (N) BENDING RADIUS (mm) TEMPERATURE RANGE
(IEC 60794-1-2-F1)
Installation Operating Temporary Permanent Installation Operating
4F 8.0 60 800 400 15D 20D -20° to +70° C -40° to +70° C
6F 9.0 79 800 400 15D 20D -20° to +70° C -40° to +70° C
8F 10.2 95 800 400 15D 20D -20° to +70° C -40° to +70° C
12F 12.0 120 800 400 15D 20D -20° to +70° C -40° to +70° C
16F 13.5 160 800 400 15D 20D -20° to +70° C -40° to +70° C

Special Features

  • Individual cores are printed at every 200 mm for identification
  • Tight buffer & simplex jacket are available in variety of colours.
  • Easy access to the fibres
  • Quick Cable Entry

Mechanical Characteristics

Torsion Resistance (IEC 60794-1-2-E7) 2 Cycle (± 360°) 1 Kg Weight, L= 2 Mtr
Crush Resistance (IEC 60794-1-2-E3) 1000 N (100 X 100 mm) for 60 sec
Kink Resistance (IEC 60794-1-2-E10) 15 x D, D = Cable D

Drum Length

  • 1000 meters ± 10%
