CONDUCTOR

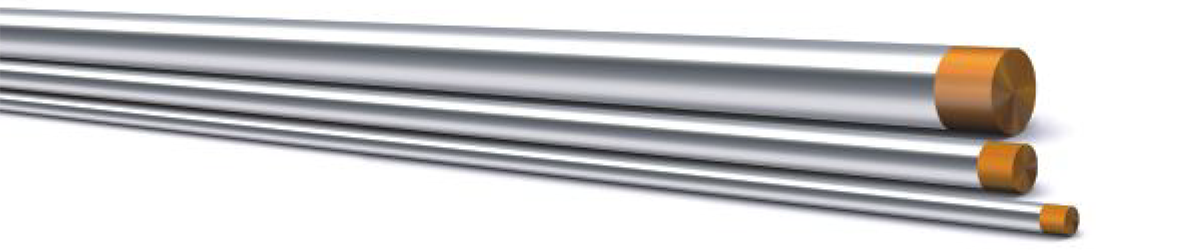

ELECTROPLATED TINNED COPPER WIRE

Ipsum

Data Sheet

A) Electroplated Tinned Wires Suitable for Drawing to Fine Wire [UN-ANNEALED]

WIRE SIZE PARAMETER SPECIFIED VALUES UOM
2.80 mm 2.80 mm 2.80 mm
Tin Coating (Min) As per Requirement* Microns
Pershulphate Test Should Pass
WIRE SIZE PARAMETER SPECIFIED VALUES UOM
1.60 mm Diameter (Mom) 1.60 mm
Tin Coating (Min) As per Requirement* Microns
Pershulphate Test Should Pass

*Depends on the Tin Coating Thickness required at finely Drawn Copper Wire
Above Sizes Shall be packed in Returnable MS Baskets.



B) Drawn Tinned Copper [ANNEALED]

WIRE SIZE PARAMETER SPECIFIED VALUES UOM
0.50 mm Resistance (max) 91 Ω/Km
Diameter (Nom)) 0.492 mm
Elongation (Min) 20 %
Tin Coating (Min) 1 Microns
Pershulphate Test Should Pass
WIRE SIZE PARAMETER SPECIFIED VALUES UOM
0.40 mm Resistance (max) 142 Ω/Km
Diameter (Nom)) 0.392 mm
Elongation (Min) 18 %
Tin Coating (Min) 1 Microns
Pershulphate Test Should Pass

Above Sizes Shall be packed in Returnable 630 mm MS Reels.
Pershulphate Test : Shall be done as per IS 10810 Part 4 : 1994
We can make as per customer specifications
Note: Tinned copper wire of other specific wire sizes also available on request.

Advantages of Electro-tinned Wire Over Hot Dip Tinned Wire

  • Uniform & Controlled Tin coating
  • Better tin bonding with base metal i.e. copper
  • Uniform wire elongation
  • Re-drawable to finer sizes offering flexibility to customer
