INDOOR CABLES

PVC INSULATED INDUSTRIAL CABLE ( SHEATHED)

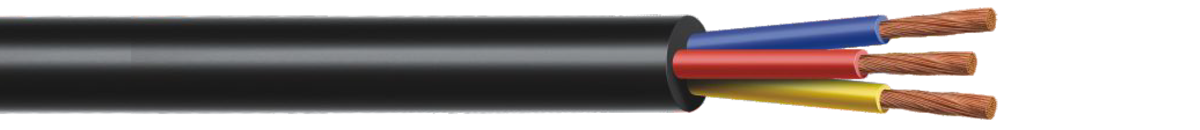

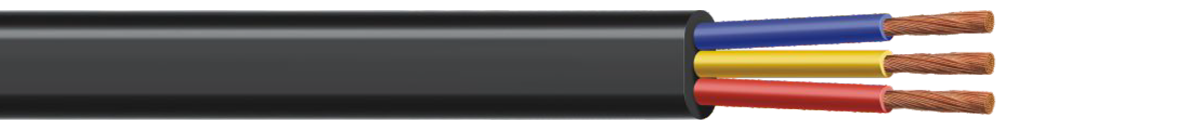

These are Single and multicore cables/cords with rigid as well as flexible annealed bare/tinned copper and aluminium conductors, insulated and sheathed with PVC.

Ipsum

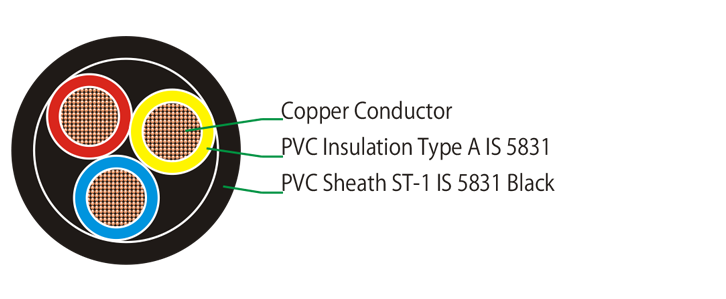

Typical Cross section

Technical Details

Nominal Cross Section Sq mm Diameter of Single Wire Max mm Maximum Electrical Resistance @ 20°C (Ω/Km) Insulation Wall Thickness Nominal. mm Insulation Wall Thickness Nominal. mm Cable Outer Diameter
Plain Wires Tinned Wires Nominal Maximum
0.50 0.21 39.0 40.1 0.60 0.90 7.0 7.3
0.75 0.21 26.0 26.7 0.60 0.90 7.4 7.7
1.0 0.21 19.50 20.0 0.60 0.90 7.8 8.1
1.5 0.26 13.30 13.70 0.60 0.90 8.3 8.3
2.5 0.26 7.98 8.21 0.70 1.00 9.9 10.9
4.0 0.31 4.95 5.09 0.80 1.00 11.5 12.4
6.0 0.31 3.30 3.39 0.80 1.20 13.1 13.8
10.0 0.41 1.91 1.95 1.00 1.40 16.5 17.69
16.0 0.41 1.21 1.24 1.00 1.40 18.8 20.6
25.0 0.41 0.780 0.795 1.20 1.50 22.6 25.6
35.0 0.41 0.554 0.565 1.20 1.60 25.3 29.3
50.0 0.41 0.386 0.393 1.40 2.00 30.2 34.6

Note:

a) Multicore Cables upto 120 Sqmm with Rigid conductor (Class 1 or 2 of Copper or Aluminium Conductor as per IS 8130) can be supplied

b) Multicore Cables upto 300 Sqmm with Flexible conductor (Class 5 Copper Conductor as per IS 8130) can be supplied.


Ipsum

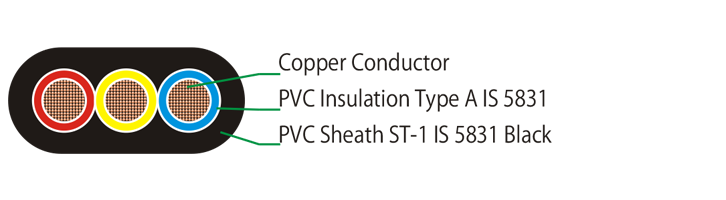

Typical Cross section

Features:

  • Categories of Cables: Indoor, Outdoor, FR and FR-LSH.
  • Temperature Range: -10°C to +70°C or +85°C.
  • Available in different colors and stripes.
  • Available in Leaded or Lead free grades.
  • Packed in Coils of suitable standard lengths.
  • BIS Certification vide IS 694 Licence No. CM/L 3050333

Technical Details

Nominal Cross Section Sq mm Diameter of Single Wire Max mm Maximum Electrical Resistance @ 20°C (Ω/Km) Insulation Wall Thickness Min. mm Sheath Thickness Nominal Cable Outer Diameter mm
Plain Wires Tinned Wires
0.50 0.21 39.0 40.1 0.60 0.90 9.6x4.9
0.75 0.21 26.0 26.7 0.60 0.90 10.5x5.2
1.0 0.21 19.5 20.0 0.60 0.90 11.0x5.4
1.5 0.26 13.30 13.70 0.70 0.90 10.7x5.3
2.5 0.26 7.98 8.21 0.80 1.00 13.0x6.2
