FIBRE OPTIC CABLES > MICRODUCT > SUPER LEAN 200 MICRON

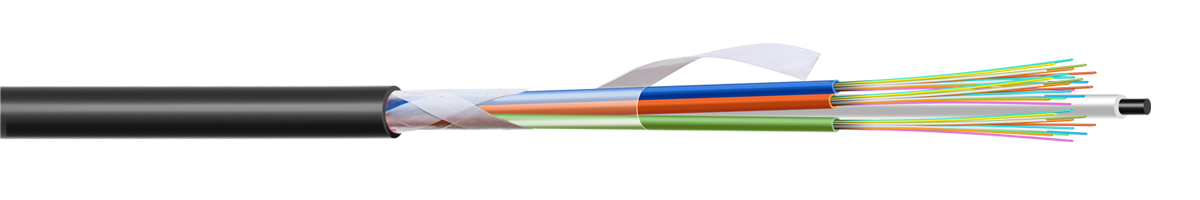

12F - 96F Single Sheath Fibre Super Lean
Micro Optical Fiber Cable

Application

  • Suitable for Installation in Micro Duct.
Ipsum

Typical Cross section of 48 Fibre

Cable Construction Details

  • Up to 96 enhance low water peak single mode fibres in full compliance with ITU‑T‑G.652.D (also available G.657A1 & G657A2).
  • Non metallic anti-buckling FRP rod as Central Strength Member.
  • Loose buffer tubes fully filled with Thixotropic Jelly & Fibres.
  • Loose buffer tubes S-Z Stranded along with FRP to provide a circular shaped cable.
  • Cable core is Dry (Water Swellable Yarn over CSM).
  • Cable core is wrapped with water swellable tape.
  • Outer sheath NYLON, Black.
  • Rip cord to open the sheath.

Technical Characteristics

FIBRE COUNT DIAMETER (mm) Nominal WEIGHT (Kg./Km) Nominal TENSILE STRENGTH (N) BENDING RADIUS (mm) TEMPERATURE RANGE
(IEC 60794-1-2-F1)
Installation Operation Installation Operation Installation Operation
200um fibre G.657A1 & G.657A2 With 24F/tube design
24F – 48F 4.0 15 300 N 150 N 30D 40D -10°C to +50°C -30°C to +70°C
96F 4.8 20 300 N 150 N 30D 40D -10°C to +50°C -30°C to +70°C
250um fibre G.652D, G.657A1 & G.657A2 With 12F/tube design
12F – 48F 4.3 16 250 N 120 N 30D 40D -10°C to +50°C -30°C to +70°C

Fibre & Tube colour coding

Without ring mark
Blue Orange Green Brown Grey White Red Black Yellow Violet Pink Aqua
With ring mark
Blue Orange Green Brown Grey White Red Natural Yellow Violet Pink Aqua
*More than 12 fibre we provide Black ring mark above the coloured fibre.

Special Features

  • Single layer S‑Z stranded construction.
  • Flexi ble buffer tubes provide easy fibre routing inside closure.
  • Completely dielectric cable immune to electromagnetic interferences.
  • Offers strength and corrosion resistance for aerial application also.

Drum Length

  • 2000/ 4000 meters ± 5%

Mechanical Characteristics

Cable Bending Radius (mm) [IEC 60794-1-21-E11 A & B] 40 X D, D= Cable diameter
Impact Resistance (Nm) [IEC 60794-1-21-E4] 1 Nm, 1 Impacts
Crush Resistance (N) [IEC 60794-1-21-E3A] 300 N (100 X 100 mm)
Torsion Resistance [IEC 60794-1-21-E7] 5 Cycle (± 180°)
Water Penetration [IEC 60794-1-22-F5 B] 1 Meter Water Head, 3 Meters
Cable Sample, 24 Hours
