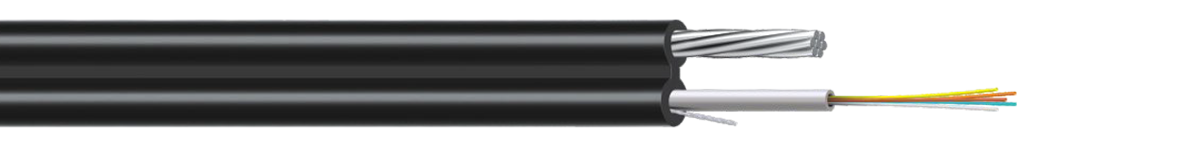

2F-24F SINGLE-TUBE FIGURE-8 TYPE AERIAL OPTICAL FIBRE CABLE

Applications

  • Lashed aerial installation with rigorous load conditions, including heavy wind and ice
  • Suitable for span length of 100 mtrs
Ipsum

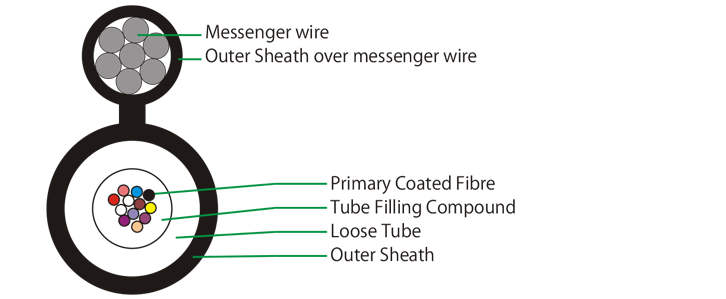

Typical Cross section of 12 Fibre

Cable Construction Details

  • Upto 24F enhance low water peak single mode fibers in full compliance with ITU-T-G.652.D (also available with G655 / G656 / G657 SM Fibre and OM1 / OM2 / OM3 & OM4 MM Fibre)
  • Loose buffer tubes fully filled with Thixotropic Jelly and Fibres
  • High tensile, galvanised, stranded steel wire used as integrated messenger wire
  • UV Stabilized PE outer sheath, black

Technical Characteristics

FIBRE COUNT DIAMETER (mm) Nominal WEIGHT (Kg./Km) Nominal TENSILE STRENGTH (N) BENDING RADIUS (mm) TEMPERATURE RANGE
(IEC 60794-1-2-F1)
Installation Operation Installation Operation Installation Operation
UPTO 12F 5.5 X 14.5 90 4500 2500 15D 20D -10° to +50° C -40° to +70° C
16/24F 6.0 X 15.0 90 4500 2500 15D 20D -10° to +50° C -40° to +70° C

Colour Coding - Fibre & Tube

Blue Orange Green Brown Grey White Red Black Yellow Violet Pink Aqua

* We provide Black ring mark over the fibre in case of more than 12 fibres


Special Features

  • Central Loose tube construction
  • Offers exceptional strength and corrosion resistance for aerial application
  • Integrated High tensile messenger for superior strength and corrosion resistance.

Drum Length

  • 2000/ 3000/ 4000 meters ± 5%

Mechanical Characteristics

Repeated Bending [IEC 60794-1-21-E6] 30 Cycle, r= 20 X D, 5 Kg Load, D = Cable Diameter
Torsion Resistance [IEC 60794-1-21-E7] 10 Cycle (± 180°), 5 Kg Weight, L= 2 Mtr
Crush Resistance [IEC 60794-1-21-E3A] 1000 N /(100 X 100 mm) for 60 sec
Impact Resistance [IEC 60794-1-21-E4] 5 Nm, 3 Nos
Kink Resistance [IEC 60794-1-21 E10] 10 x D, D = Cable Diameter
