FIBRE OPTIC CABLES > SPECIALITY

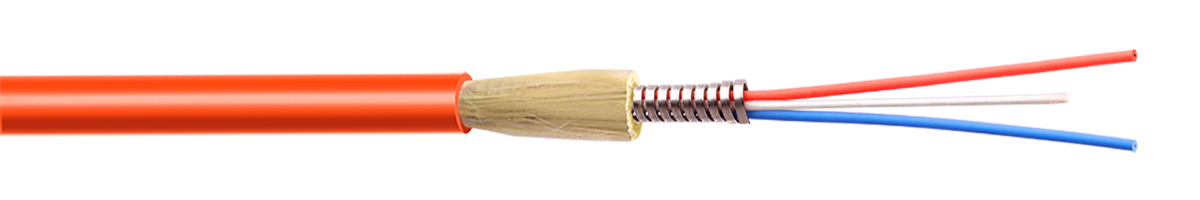

2F - 6F Single Sheath Spiral Armoured
Optical Fibre Cable

Applications

  • To provide high-speed, low-latency and reliable connectivity between the cellular base stations and the remote radio heads (RRHs) or antennas.
  • Wireless telecommunications networks.
Ipsum

Typical Cross section of 4F

Cable Construction Details

  • Tight Coating [Tight Buffer] Nylon.
  • Steel Wire Spiral Armouring.
  • Peripheral Strength member.
  • LSZH Outer sheath.

Technical Characteristics

FIBRE COUNT TIGHT BUFFER DIAMETER (μm)Nominal DIAMETER (mm) Nominal WEIGHT (Kg./Km) Nominal TENSILE STRENGTH (N) BENDING RADIUS (mm) TEMPERATURE RANGE
(IEC 60794-1-2-F1)
Installation Operation Installation Operation Installation Operation
2 600 4.8 30 500 300 10D 20D -20°C to +70°C -20°C to +70°C
4 600 5.7 47 450 300 10D 20D -20°C to +70°C -20°C to +70°C
6 600 6.0 51 450 300 10D 20D -20°C to +70°C -20°C to +70°C

Tight Buffer Colour Coding

Natural

Fiber Colour Coding

Blue Orange Green Brown Grey White

Special Features

  • Lower Latency.
  • Longer Distance Reach.
  • Flexible.
  • Light Weight.
  • Mechanical Protection.
  • Rodent and Pest Protection.

Drum Length

  • 2000/ 4000meters ± 5%

Mechanical Characteristics

Impact Resistance (Nm) [IEC 60794-1-2-E4] Height 0.5 meters,
Weight = 1 Kg, 10 nos at different places
Crush Resistance (N) [IEC 60794-1-2-E3A] 2000 N [100 X 100 mm] for 5 minutes,
3 times at 150 mm apart
Water Penetration [IEC 60794-1-2-F5 B] 1 Meter Water Head,3 Meters
Cable Sample, 24 Hours
