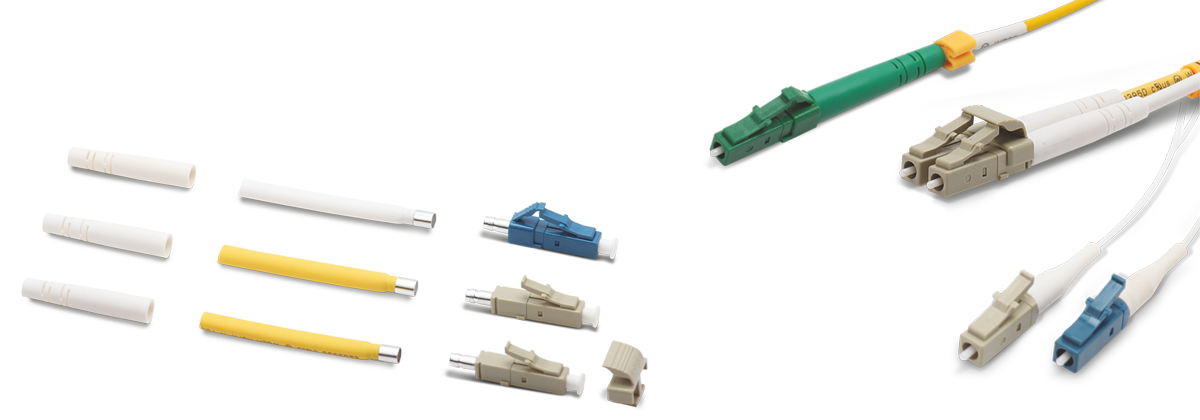

Fibre Connector Series – LC

Ipsum

Features

  • Telcordia GR-326 compliant
  • Both metal and polymer body
  • Singlemode and multimode version

Product Description

Birla connectors offers superior performance with very high repeatability. These products are fully intermatable with standard NTT products and deliver long term stability under wide range of applications. Our product utilizes preradiuserd Zerconia ferrules to ensure low loss.

Applications

  • Local area Networks
  • Fast Ethernet
  • ATM Networks
  • Optical transport
  • Optical access network

Technical Features

Parameters Multimode Single mode
Insertion loss 0.2dB Typical 0.15dB Typical
0.3dB Max 0.25dB Max
Back Reflection -25dB Typical -35dB PC Polish
-45dB Super PC Polich
-55dB Ultra PC Polish
Connection Durability 500 Matings 500 Matings
Connector Repeatability ΔIL < 0.2dB ΔIL < 0.1dB
Operating Environment -40°C to +85°C -40°C to +85°C
Temperature Cycling ΔIL < 0.2dB/ΔRL < 5dB ΔIL < 0.2dB/ΔRL < 5dB
Vibration ΔIL < 0.1dB/ΔRL < 5dB ΔIL < 0.1dB/ΔRL < 5dB
Cable retension > 6.8 kg > 6.8 kg
