FIBRE OPTICS CABLES > MICROMODULE > MULTI-TUBE

6F-48F Double Sheath Fan Out ECCS Tape

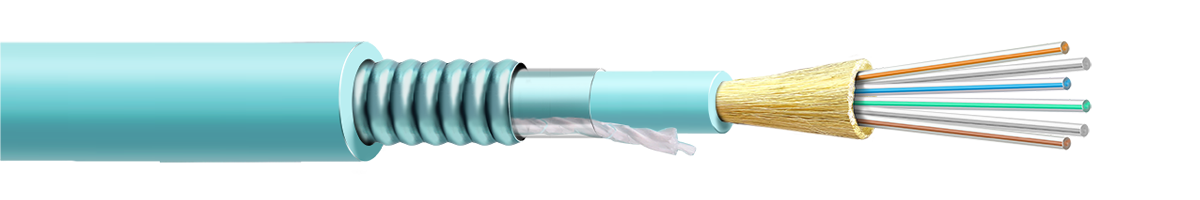

Armoured Optical Fibre Cable

Applications

  • The universal design is suited for use in most network arenas, including backbone, access and distribution.
  • Quick fibre preparation ready for installation.
  • Installation within ducts using blown on pulling techniques.
Ipsum

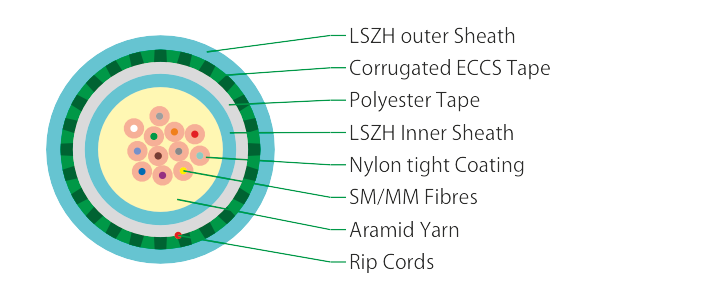

Typical Cross section of 12 Fibre

Cable Construction Details

  • Tight Buffer Nylon.
  • High Modulus, Aramid yarn as peripheral strength member.
  • The Tight buffer unit consist of single fibre an easily strippable and flexible.
  • LSZH inner sheath.
  • Corrugated ECCS tape armour.
  • LSZH outer sheath.

Technical Characteristics

FIBRE COUNT TIGHT BUFFER DIAMETER (μm)Nominal DIAMETER (mm) Nominal WEIGHT (Kg./Km) Nominal TENSILE STRENGTH (N) BENDING RADIUS (mm) TEMPERATURE RANGE
(IEC 60794-1-2-F1)
Installation Operation Installation Operation Installation Operation
6 900 10.5 120 1200 700 10D 20D -15°C to +60°C -15°C to +70°C
12 900 11.5 140 1400 750 10D 20D -15°C to +60°C -15°C to +70°C
24 900 13.4 195 2400 1200 10D 20D -15°C to +60°C -15°C to +70°C
48 900 15.6 245 2700 1500 10D 20D -15°C to +60°C -15°C to +70°C

Fibre & Micro Module Colour Coding

Blue Orange Green Brown Grey White Red Black Yellow Violet Pink Aqua
*For Fibre Count 12F We provide the above colour code
*For Higher Fibre count we provide contrast dot marking of above colour code

Special Features

  • Reduced diameter.
  • Armour provides excellent crush performance.

Drum Length

  • 2000/ 4000meters ± 5%

Mechanical Characteristics

Kink Resistance (mm) [IEC 60794-1-2-E10] 10 x D, D = Cable Diameter
Impact Resistance (Nm) [IEC 60794-1-2-E4] Height 0.5 meters,
Weight = 1 Kg, 3 Nos
Crush Resistance (N) [IEC 60794-1-2-E3] 1000 [100 X 100 mm] for 60 sec
Torsion Resistance [IEC 60794-1-2-E7] 10 Cycle, ± 180°,
Length under Test 2 meters
Repeated Bending [IEC 60794-1-2-E6] 25 Cycle, r = 20 X D,
D = Cable Diameter
