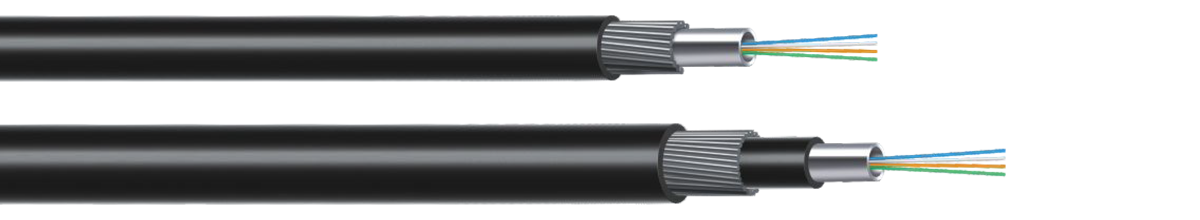

STAINLESS STEEL WIRE ARMOURED TACTICAL CABLE FOR MILITARY APPLICATION

Tactical Optical Fibre Cables

Applications

  • Indoor / Outdoor.
  • Suitable for rapid deployment in extreme environmental conditions.
  • For military application.
  • Temporary robust communication lines and mobile applications with Rodent protection.
Ipsum

Typical Cross Section Of 4 F Air Blown Cable

Technical Characteristics

FIBRE COUNT SHEATH DIAMETER (mm) Max. WEIGHT (Kg./Km) BENDING RADIUS (mm) TEMPERATURE RANGE
(IEC 60794-1-2-F1)
Nominal Installation Operation Installation Operation
UPTO 6F Double Sheath 6.0 70 15D 20D -10° to +50° C -40° to +70° C
12F Double Sheath 7.0 95 15D 20D -10° to +50° C -40° to +70° C
UPTO 6F Single Sheath 6.0 45 15D 20D -10° to +50° C -40° to +70° C

Colour Coding - Fibre & Tube

Blue Orange Green Brown Grey White Red Black Yellow Violet Pink Aqua

Special Features

  • Cut resistant, Polyurethane outer jacket.
  • Flexible construction for multiple deployment.
  • Performance in wide temp range.
  • High permissible tensile strength.
  • Excellent protection against rodents and termites.
  • Durable in high traffic areas.
  • Ruggedized cable and easy to use in the field.
  • High impact and crush resistance.

Mechanical Characteristics

Tensile Strength Permanent 900 N max.
Crush Strength 1000 N/cm
Impact Resistance 200 (Min.)
Flex Resistance 2000 Cycle (Min.)
Storage Temperature -300 0 C to +65 C
Breaking Load >3500 N
Water Pressure >500 Bar

Drum Length

  • 500/ 1000/ 2000 meters ± 5%
