CONTROL CABLE

As per IS:1554 (Part-1):1988

Ipsum

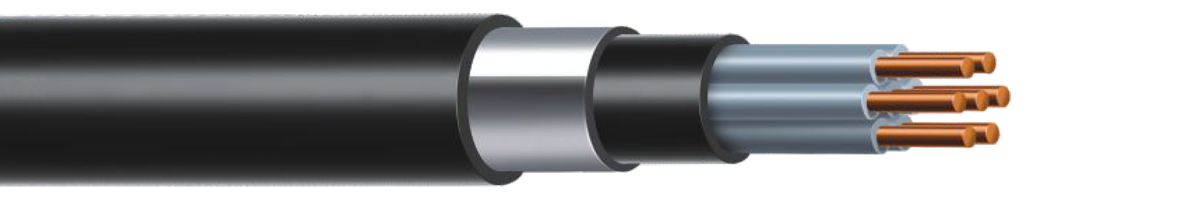

Typical Cross section for Armoured Cable

Cable Construction Details

Voltage : These cables can be used on AC voltage up to & Including 1100 V or DC up to & including 1500 V.
Size : 1.5 Sq.mm. & 2.5 Sq.mm. upto 37 Cores
Conductor: Annealed Bare Electrolytic Copper/ Aluminum Conductor conforming to IS:8130:1984.
Insulation: Conductors are insulated with PVC Compound as per IS:5831:1984.
Colour of Cores: Cores are identified with a colour scheme as per IS:1554 (pt-1):1988 as under
2 Cores - Red & Black
3 Cores - Red, Yellow & Blue
3½ & 4 Cores - Red, Yellow, Blue & Black (Reduced Neutral Core in case of 3½ Core).
5 Cores - Red, Yellow, Blue, Black and Grey
In case of cable exceeding five cores, two adjacent (counting and direction cores) in each layer shall be colored Blue, Yellow and remaining cores grey, or identification by numbers printed over insulation as per IS:1554 (pt-1):1988
Laying of Cores: Cores are laid up with a suitable lay. The final layer direction shall be kept right hand lay
Inner Sheath: The Inner Sheath is applied over laid up of cores by extrusion/wrapping of thermoplastic material.
Armouring: It is applied over inner sheath. It may consist of galvanized Round Steel wires or galvanized Flat Steel Strips conforming to IS 3975. Round Wire armouring is provided, where the calculated diameter under armour is 13.0 mm. Above this, armouring is either round wire/steel strip.
Outer Sheath: A final covering of PVC Compound, conforming to IS:5831:1984, is applied over Armouring in case of Armoured Cable or over Inner Sheath in case of Unarmoured cable, called as “Outer Sheath”.
The Insulation, Inner Sheath or Outer Sheath can be HR PVC, FRLS PVC or FRHF Compound , depending upon their application.

1.1 KV 1.5/2.5 Sqmm (Solid) Multicore Unarmoured PVC Control Cables Conforming to IS : 1554 (Pt - I) - 1988

No. of Cores & Cross Sectional Area Thickness of PVC Insulation (Nom.) Thickness of PVC Inner Sheath (min.) Extruded Thickness of PVC Outer Sheath (Nom.) Approx. O.D. Approx. Net Weight of Cable Standard Delivery Length in Current Rating
Direct in Ground In Air/ Duct
No x mm2 mm mm mm mm Kg/Km Mtrs Amps. Amps.
2 x 1.5 0.8 0.3 1.8 11.5 155 500/1000 23 20
3 x 1.5 0.8 0.3 1.8 12.0 177 500/1000 21 17
4 x 1.5 0.8 0.3 1.8 13.0 208 500/1000 21 17
5 x 1.5 0.8 0.3 1.8 14.0 243 500/1000 16 14
6 x 1.5 0.8 0.3 1.8 15.0 261 500/1000 15 13
7 x 1.5 0.8 0.3 1.8 15.0 271 500/1000 14 13
10 x 1.5 0.8 0.3 1.8 18.0 368 500/1000 13 11
12 x 1.5 0.8 0.3 1.8 18.5 416 500/1000 12 10
14 x 1.5 0.8 0.3 1.8 19.0 466 500/1000 11 10
16 x 1.5 0.8 0.3 1.8 20.0 521 500/1000 11 9
19 x 1.5 0.8 0.3 2.0 21.5 607 500/1000 10 9
24 x 1.5 0.8 0.3 2.0 24.5 749 500/1000 9 8
27 x 1.5 0.8 0.3 2.0 25.0 817 500/1000 9 8
30 x 1.5 0.8 0.3 2.0 26.0 890 500/1000 9 7
37 x 1.5 0.8 0.3 2.0 28.0 1058 500/1000 8 7
2 x 2.5 0.9 0.3 1.8 13.0 200 500/1000 32 27
3 x 2.5 0.9 0.3 1.8 13.5 234 500/1000 27 24
4 x 2.5 0.9 0.3 1.8 14.5 281 500/1000 27 24
5 x 2.5 0.9 0.3 1.8 15.5 331 500/1000 23 19
6 x 2.5 0.9 0.3 1.8 16.5 356 500/1000 21 18
7 x 2.5 0.9 0.3 1.8 16.5 374 500/1000 20 17
8 x 2.5 0.9 0.3 1.8 18.0 434 500/1000 19 16
9 x 2.5 0.9 0.3 1.8 19.0 492 500/1000 18 15
10 x 2.5 0.9 0.3 1.8 20.5 512 500/1000 18 15
12 x 2.5 0.9 0.3 2.0 21.5 602 500/1000 17 14
14 x 2.5 0.9 0.3 2.0 22.5 680 500/1000 16 14
16 x 2.5 0.9 0.3 2.0 23.5 764 500/1000 15 13
19 x 2.5 0.9 0.3 2.0 24.5 870 500/1000 14 12
24 x 2.5 0.9 0.3 2.0 28.5 1077 500/1000 13 11
27 x 2.5 0.9 0.3 2.0 29.0 1182 500/1000 12 10
30 x 2.5 0.9 0.3 2.0 30.0 1292 500/1000 12 10
37 x 2.5 0.9 0.4 2.2 32.5 1588 500/1000 11 9

Construction Variants

1. Solid / Stranded annealed copper conductor &Tinned / Bare

2. General Purpose / HR PVC insulation

3. Cores laid up ( filled if needed )

4. FRLS / General Purpose PVC inner sheath

5. FRLS / General purpose PVC Outersheath



Max. Conductor D.C. Resistance at 20 Deg C - Conductor Size :

1.5 sq.mm - 12.1 ? / km (Bare), 12.2 Ω / km (Tinned)

2.5 sq.mm - 7.41 ? / km (Bare), 7.56 Ω / km (Tinned)

1.1 KV 1.5/2.5 Sqmm (Solid) Multicore Unarmoured PVC Control Cables Conforming to IS : 1554 (Pt - I) - 1988

No. of Cores & Cross Sectional Area Thickness of PVC Insulation (Nom.) Thickness of PVC Inner Sheath (min.) Extruded Round Wire Dia Flat Strip Thickness of PVC Outer Sheath (Min.) Approx. O.D. Approx. Net Weight of Cable Standard Delivery Length in Current Rating
Direct in Ground In Air/ Duct
No x mm2 mm mm mm mm mm Mtrs Kg/Km Mtrs Amps. Amps.
2 x 1.5 0.8 0.3 1.4 1.24 1.24 357 500/1000 23 20
3 x 1.5 0.8 0.3 1.4 1.24 14.0 390 500/1000 21 17
4 x 1.5 0.8 0.3 1.4 1.24 14.5 446 500/1000 21 17
5 x 1.5 0.8 0.3 1.4 1.24 15.5 491 500/1000 16 14
6 x 1.5 0.8 0.3 1.4 1.24 16.5 534 500/1000 15 13
7 x 1.5 0.8 0.3 1.4 1.24 16.5 544 500/1000 14 13
10 x 1.5 0.8 0.3 1.4 1.40 20.0 726 500/1000 13 11
12 x 1.5 0.8 0.3 4.0 x 0.8 1.24 19.0 632 500/1000 12 10
14 x 1.5 0.8 0.3 4.0 x 0.8 1.40 20.0 724 500/1000 11 10
16 x 1.5 0.8 0.3 4.0 x 0.8 1.40 21.0 778 500/1000 11 9
19 x 1.5 0.8 0.3 4.0 x 0.8 1.40 22.0 871 500/1000 10 9
24 x 1.5 0.8 0.3 4.0 x 0.8 1.40 25.0 1060 500/1000 9 9
27 x 1.5 0.8 0.3 4.0 x 0.8 1.40 25.5 1127 500/1000 9 8
30 x 1.5 0.8 0.3 4.0 x 0.8 1.40 26.5 1225 500/1000 9 7
37 x 1.5 0.8 0.3 4.0 x 0.8 1.40 28.0 1416 500/1000 8 7
2 x 2.5 0.9 0.3 1.4 1.24 14.5 438 500/1000 32 27
3 x 2.5 0.9 0.3 1.4 1.24 15.0 483 500/1000 27 24
4 x 2.5 0.9 0.3 1.4 1.24 16.0 554 500/1000 27 24
5 x 2.5 0.9 0.3 1.4 1.24 17.5 628 500/1000 23 19
6 x 2.5 0.9 0.3 1.4 1.24 18.5 676 500/1000 21 18
7 x 2.5 0.9 0.3 1.4 1.24 18.5 694 500/1000 20 17
8 x 2.5 0.9 0.3 1.4 1.40 20.0 793 500/1000 19 16
9 x 2.5 0.9 0.3 4.0 x 0.8 1.40 20.0 750 500/1000 18 15
10 x 2.5 0.9 0.3 4.0 x 0.8 1.40 21.0 795 500/1000 18 15
12 x 2.5 0.9 0.3 4.0 x 0.8 1.40 22.0 866 500/1000 17 14
14 x 2.5 0.9 0.3 4.0 x 0.8 1.40 23.0 969 500/1000 16 14
16 x 2.5 0.9 0.3 4.0 x 0.8 1.40 24.0 1051 500/1000 15 13
19 x 2.5 0.9 0.3 4.0 x 0.8 1.40 25.0 1181 500/1000 14 12
24 x 2.5 0.9 0.3 4.0 x 0.8 1.40 29.0 1459 500/1000 13 11
27 x 2.5 0.9 0.3 4.0 x 0.8 1.40 29.5 1564 500/1000 12 10
30 x 2.5 0.9 0.3 4.0 x 0.8 1.56 30.5 1723 500/1000 12 10
37 x 2.5 0.9 0.4 4.0 x 0.8 1.56 33.0 2014 500/1000 11 9

Construction Variants

1. Solid / Stranded annealed copper conductor &Tinned / Bare

2. General Purpose / HR PVC insulation

3. Cores laid up ( filled if needed )

4. FRLS / General Purpose PVC inner sheath

5. Armouring round Galvanised Steel wires / strips

6. FRLS / General purpose PVC Outersheath



Max. Conductor D.C. Resistance at 20 Deg C - Conductor Size :

1.5 sq.mm - 12.1 Ω / km (Bare), 12.2 Ω / km (Tinned)

2.5 sq.mm - 7.41 Ω / km (Bare), 7.56 Ω / km (Tinned)
