FIBRE OPTIC CABLES > INDOOR > UNI-TUBE

INTERCONNECT CABLES

Applications

Communication racks and wiring closets, walls, ceilings, floor ducts, etc.
In the final connection to terminal devices such as workstation and computer terminals for high speed voice, video, data, and FTTx applications.
Short run office & computer room cabling.
Patch cords, Pigtails & Jumpers.

Typical Cross Section of Simplex

Cable Construction Details - Simplex

A single optical fibre is tight buffered and surrounded by aramid yarn strength member and jacketed with riser or plenum or LSZH grade jacketing to 2.0/3.0 mm diameter.

Typical Cross Section of Duplex

Cable Con struction Details - Duplex

Two Simplex cables 2.0/3.0 mm are joined as a figure-8 design

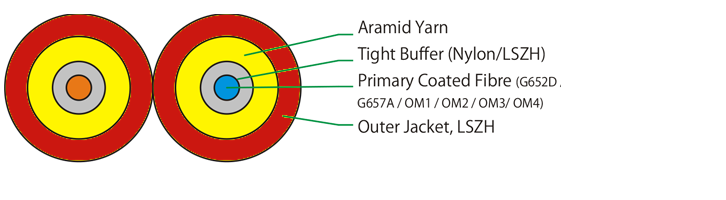

Typical Cross Section of Flat Twin

Cable Construction Details - Flat Twin

Duplex Zip cable (2.0/3.0 mm) is jacketed with riser, plenum or LSZH grade jacketing.

Drum Length

1000/ 2000 meters ± 5%
