FIBRE OPTIC CABLES > SPECIALITY

Single sheath Spiral Furcation Tube Cable

Application

To protect the bare or tight buffered optical fibers and to allow them to be terminated with connectors.

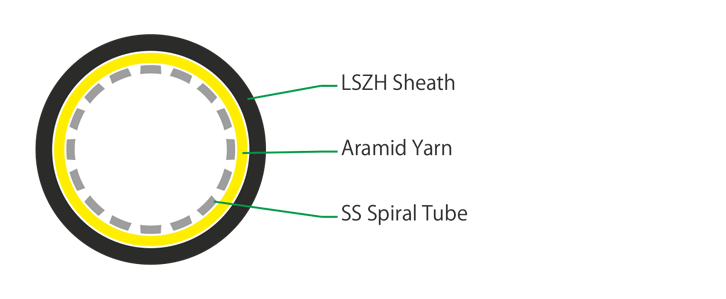

Typical Cross section

Cable Construction Details

Stainless Steel Spiral tube.
Aramid Yarn.
LSZH Sheath, Black Colour.

Technical Characteristics

FIBRE COUNT	WEIGHT (Kg./Km) Nominal	TENSILE STRENGTH (N)		BENDING RADIUS (mm)		TEMPERATURE RANGE (IEC 60794-1-2-F1)
		Installation	Operation	Installation	Operation	Installation	Operation
4.8	30	450	300	15D	20D	-20°C to +70°C	-20°C to +70°C
2.75	12	250	170	15D	20D	-20°C to +70°C	-20°C to +70°C

Special Features

Mechanical Protection.
Flexibility.
Rodent and Pest Protection.
Environmental Protection.

Drum Length

2000/ 4000meters ± 5%

Mechanical Characteristics

Kink Resistance (mm) [IEC 60794-1-2-E10]	15 x D, D = Cable Diameter
Impact Resistance (Nm) [IEC 60794-1-2-E4]	Height 0.5 meters, Weight = 0.5 Kg, 3 Nos
Crush Resistance (N) [IEC 60794-1-2-E3]	500 N/ 10 cm
